Automotive Self-Locking Inserts

SKU: N/A

$5.12 – $8.38

0 People watching this product now!
Compatible Tap Size
External Thread Size
Internal Thread Fit
Internal Thread Size
Maximum Hole Diameter
Overall Length
System of Measurement
Thread Type
Wall Type
Drill Bit Size
External Thread Fit
Insert Diameter
Minimum Installation Depth
1"-12
1"-12
2B
M18-1.50
0.922 in
12 mm
Inch/Metric
Coarse
Heavy Wall
59/64
2A
1 in
33/64 in

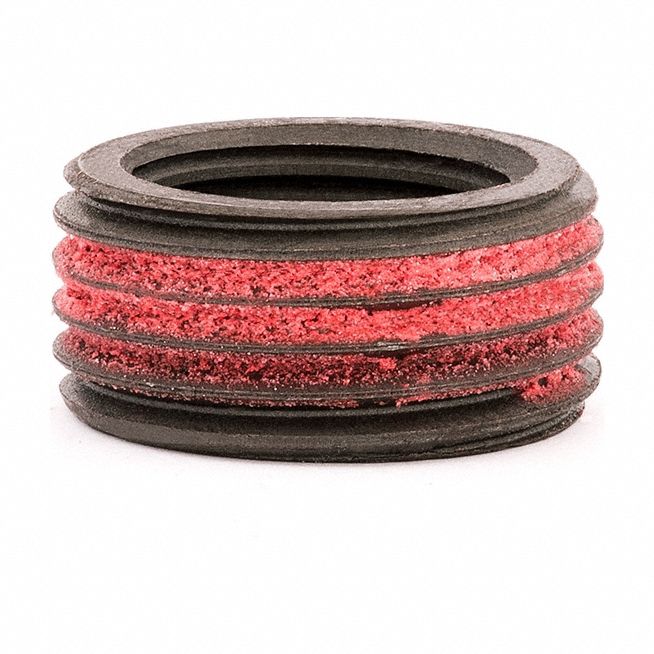

Automotive Self-Locking Inserts
$5.81
807T53
instock
Compatible Tap Size: 1"-12, External Thread Size: 1"-12, Internal Thread Fit: 2B, Internal Thread Size: M18-1.50, Maximum Hole Diameter: 0.922 in, Overall Length: 12 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 59/64, External Thread Fit: 2A, Insert Diameter: 1 in, Minimum Installation Depth: 33/64 in
Add to cart
M18-1.50
M18-1.50
6H
M14-1.25
16.5 mm
12 mm
Metric
Coarse
Standard Wall
16.5mm
6G
18 mm
13-1/4 mm

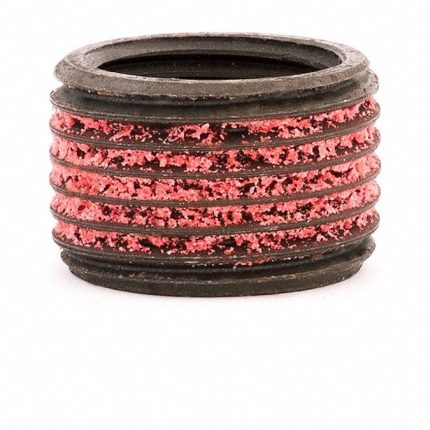

Automotive Self-Locking Inserts
$7.15
807T56
instock
Compatible Tap Size: M18-1.50, External Thread Size: M18-1.50, Internal Thread Fit: 6H, Internal Thread Size: M14-1.25, Maximum Hole Diameter: 16.5 mm, Overall Length: 12 mm, System of Measurement: Metric, Thread Type: Coarse, Wall Type: Standard Wall, Drill Bit Size: 16.5mm, External Thread Fit: 6G, Insert Diameter: 18 mm, Minimum Installation Depth: 13-1/4 mm
Add to cart
3/4"-16
3/4"-16
2B
M14-1.25
0.688 in
18 mm
Inch/Metric
Coarse
Heavy Wall
11/16
2A
3/4 in
13/16 in

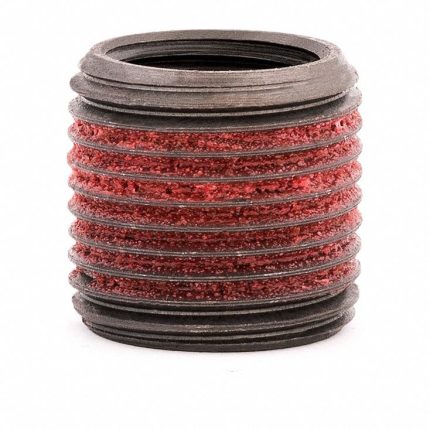

Automotive Self-Locking Inserts
$8.19
807T52
instock
Compatible Tap Size: 3/4"-16, External Thread Size: 3/4"-16, Internal Thread Fit: 2B, Internal Thread Size: M14-1.25, Maximum Hole Diameter: 0.688 in, Overall Length: 18 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 11/16, External Thread Fit: 2A, Insert Diameter: 3/4 in, Minimum Installation Depth: 13/16 in
Add to cart
3/4"-16
3/4"-16
2B
M14-1.25
0.688 in
12 mm
Inch/Metric
Coarse
Heavy Wall
11/16
2A
3/4 in
33/64 in

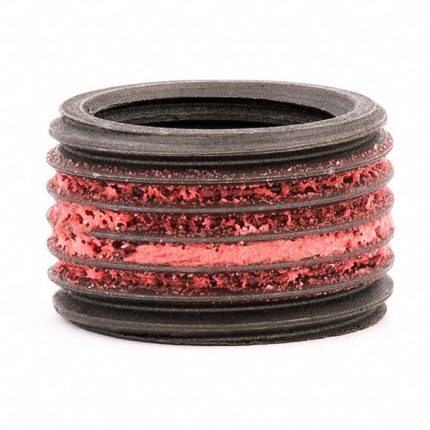

Automotive Self-Locking Inserts
$7.67
807T51
instock
Compatible Tap Size: 3/4"-16, External Thread Size: 3/4"-16, Internal Thread Fit: 2B, Internal Thread Size: M14-1.25, Maximum Hole Diameter: 0.688 in, Overall Length: 12 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 11/16, External Thread Fit: 2A, Insert Diameter: 3/4 in, Minimum Installation Depth: 33/64 in
Add to cart
3/4"-16
3/4"-16
2B
M14-1.25
0.688 in
8 mm
Inch/Metric
Coarse
Heavy Wall
11/16
2A
3/4 in
3/8 in

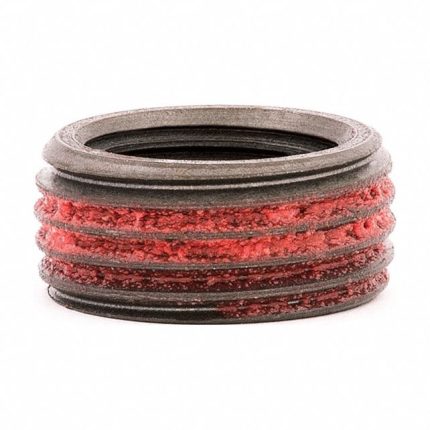

Automotive Self-Locking Inserts
$5.40
807T50
instock
Compatible Tap Size: 3/4"-16, External Thread Size: 3/4"-16, Internal Thread Fit: 2B, Internal Thread Size: M14-1.25, Maximum Hole Diameter: 0.688 in, Overall Length: 8 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 11/16, External Thread Fit: 2A, Insert Diameter: 3/4 in, Minimum Installation Depth: 3/8 in
Add to cart
5/8"-18
5/8"-18
2B
M12-1.25
0.578 in
18 mm
Inch/Metric
Coarse
Heavy Wall
37/64
2A
5/8 in
13/16 in

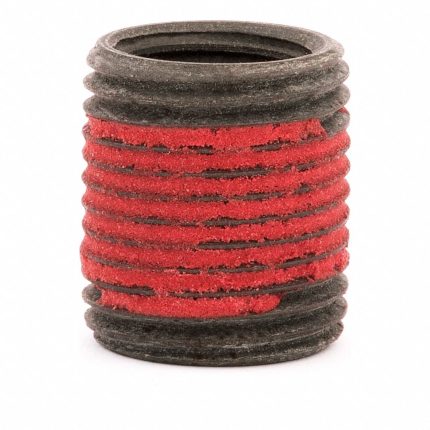

Automotive Self-Locking Inserts
$8.38
807T49
instock
Compatible Tap Size: 5/8"-18, External Thread Size: 5/8"-18, Internal Thread Fit: 2B, Internal Thread Size: M12-1.25, Maximum Hole Diameter: 0.578 in, Overall Length: 18 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 37/64, External Thread Fit: 2A, Insert Diameter: 5/8 in, Minimum Installation Depth: 13/16 in
Add to cart
5/8"-18
5/8"-18
2B
M12-1.25
0.578 in
12 mm
Inch/Metric
Coarse
Heavy Wall
37/64
2A
5/8 in
33/64 in
Automotive Self-Locking Inserts
$5.12
807T48
instock
Compatible Tap Size: 5/8"-18, External Thread Size: 5/8"-18, Internal Thread Fit: 2B, Internal Thread Size: M12-1.25, Maximum Hole Diameter: 0.578 in, Overall Length: 12 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 37/64, External Thread Fit: 2A, Insert Diameter: 5/8 in, Minimum Installation Depth: 33/64 in
Add to cart
9/16"-12
9/16"-12
2B
M10-1.50
0.484 in
25 mm
Inch/Metric
Coarse
Heavy Wall
31/64
2A
9/16 in
1-5/32 in
Automotive Self-Locking Inserts
$8.08
807T55
instock
Compatible Tap Size: 9/16"-12, External Thread Size: 9/16"-12, Internal Thread Fit: 2B, Internal Thread Size: M10-1.50, Maximum Hole Diameter: 0.484 in, Overall Length: 25 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 31/64, External Thread Fit: 2A, Insert Diameter: 9/16 in, Minimum Installation Depth: 1-5/32 in
Add to cart
9/16"-12
9/16"-12
2B
M10-1.50
0.484 in
25 mm
Inch/Metric
Coarse
Heavy Wall
31/64
2A
9/16 in
1-5/32 in

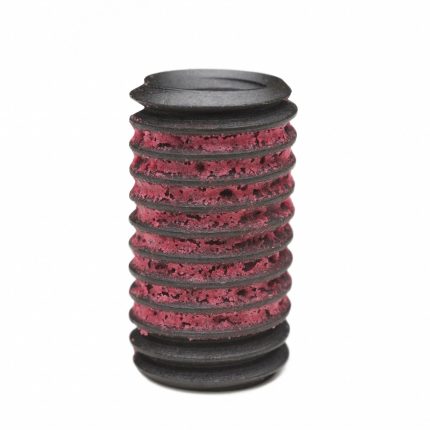

Automotive Self-Locking Inserts
$8.08
807T54
instock
Compatible Tap Size: 9/16"-12, External Thread Size: 9/16"-12, Internal Thread Fit: 2B, Internal Thread Size: M10-1.50, Maximum Hole Diameter: 0.484 in, Overall Length: 25 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 31/64, External Thread Fit: 2A, Insert Diameter: 9/16 in, Minimum Installation Depth: 1-5/32 in
Add to cart
9/16"-18
9/16"-18
2B
M10-1.00
0.516 in
12 mm
Inch/Metric
Coarse
Heavy Wall
33/64
2A
9/16 in
33/64 in

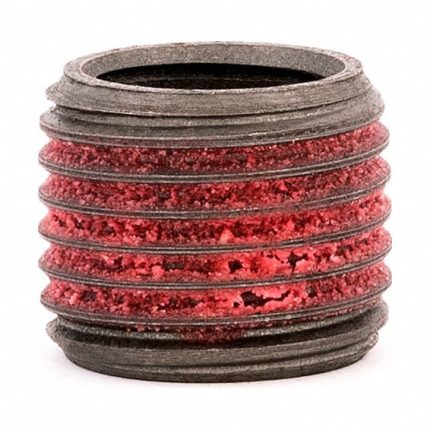

Automotive Self-Locking Inserts
$6.74
807T47
instock
Compatible Tap Size: 9/16"-18, External Thread Size: 9/16"-18, Internal Thread Fit: 2B, Internal Thread Size: M10-1.00, Maximum Hole Diameter: 0.516 in, Overall Length: 12 mm, System of Measurement: Inch/Metric, Thread Type: Coarse, Wall Type: Heavy Wall, Drill Bit Size: 33/64, External Thread Fit: 2A, Insert Diameter: 9/16 in, Minimum Installation Depth: 33/64 in
Add to cart
